Linear Unit CTJ 110

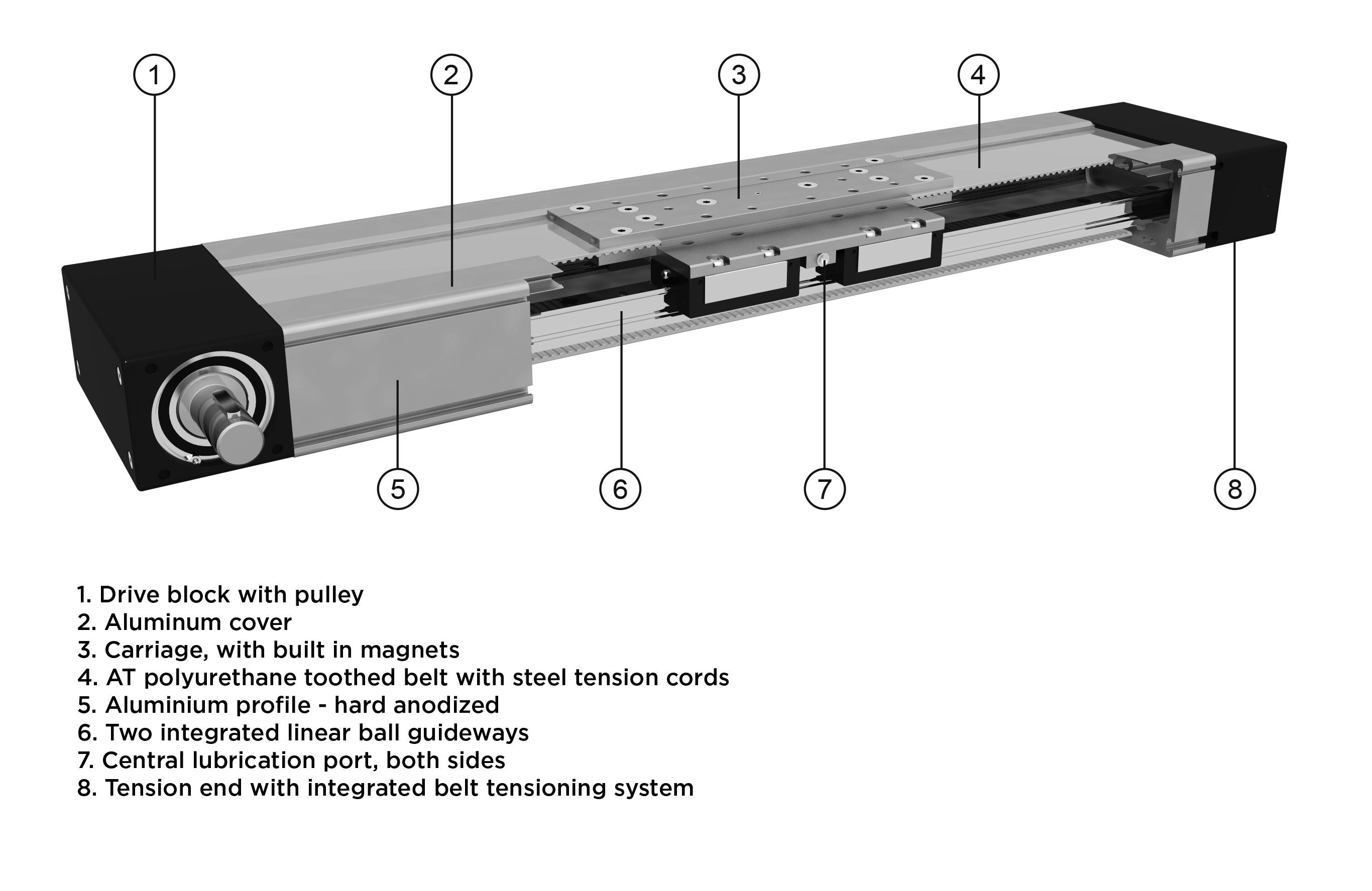

The CTJ series includes linear units with a toothed belt drive and two parallel, integrated, zero-backlash rail guides. In the linear units CTJ is used a pre-tensioned steel reinforced AT polyurethane timing toothed belt. In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.

The in the profile slot driving timing belt, protects all the parts in the profile from dust and other contaminations. Re-lubrication can be done through maintenance holes on the side of the profile.

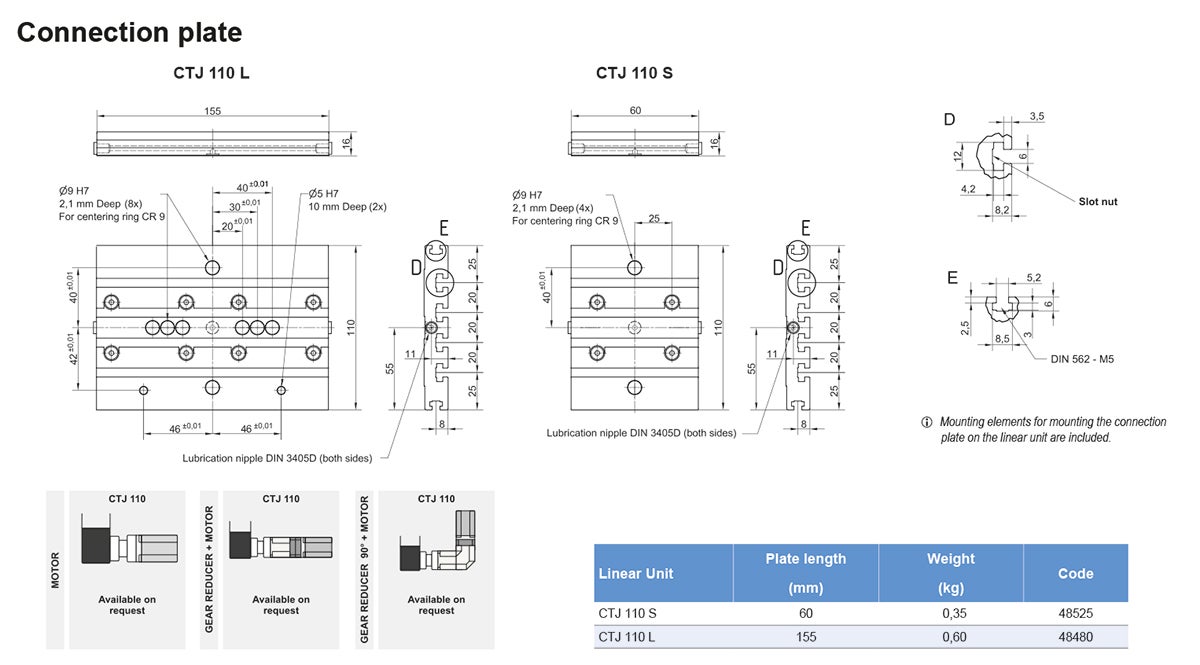

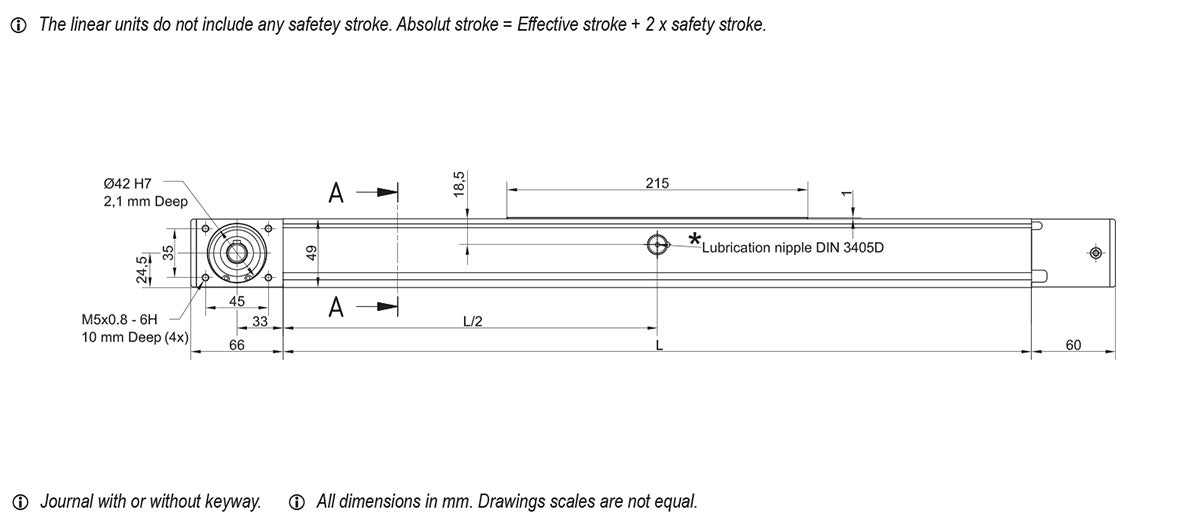

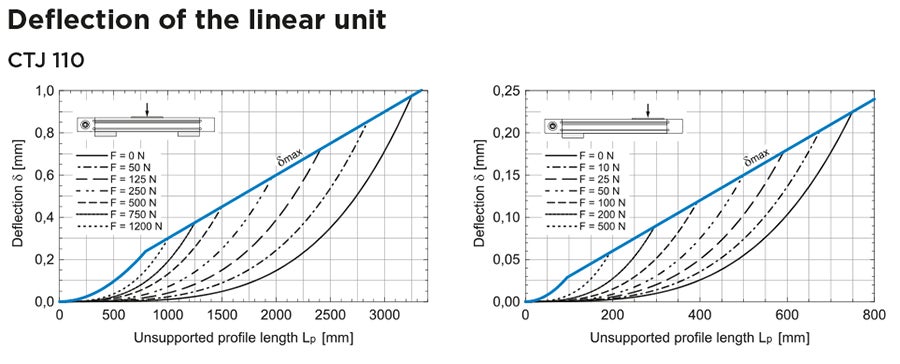

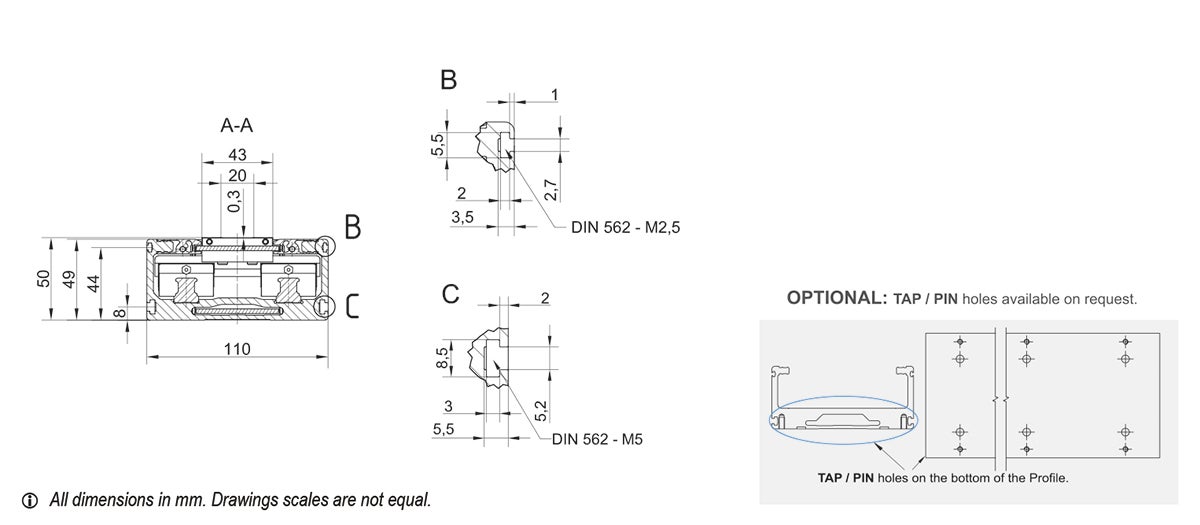

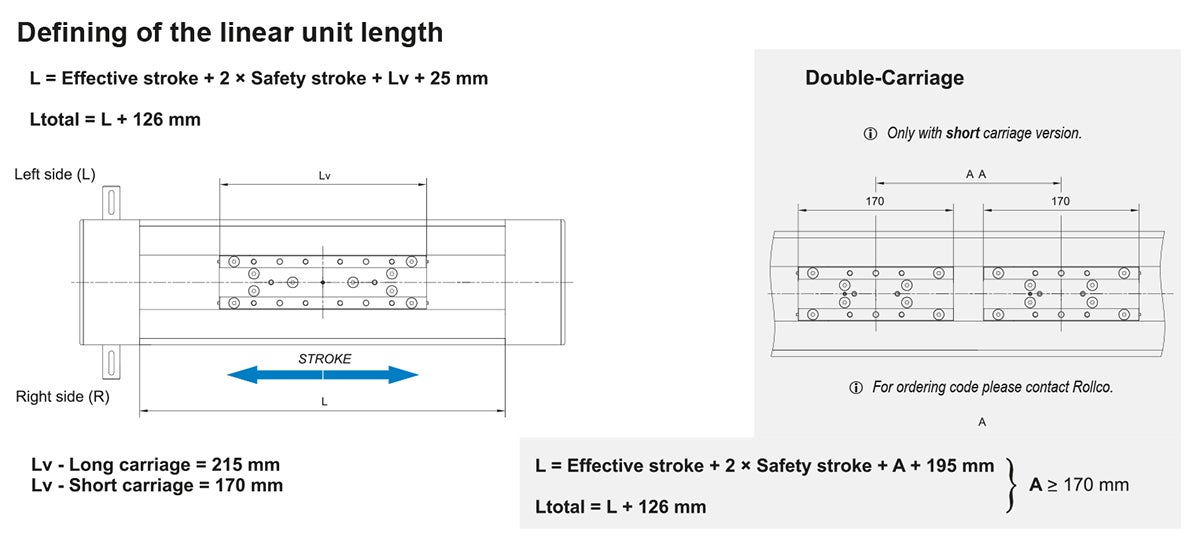

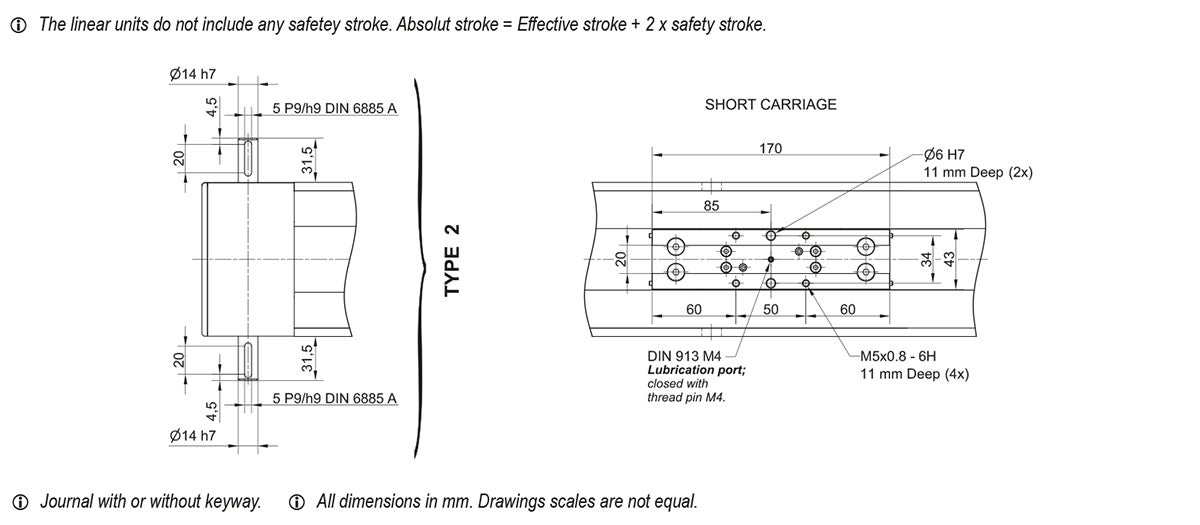

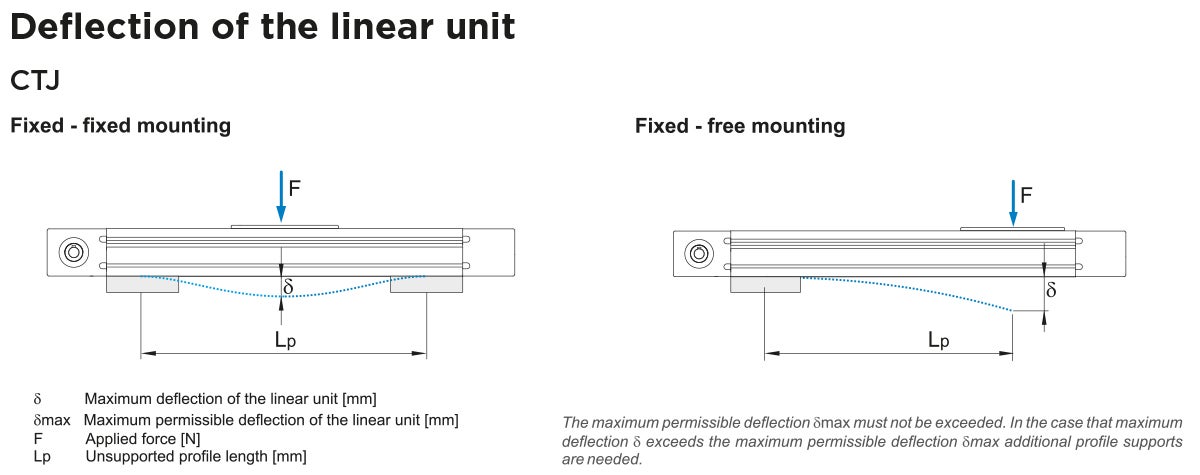

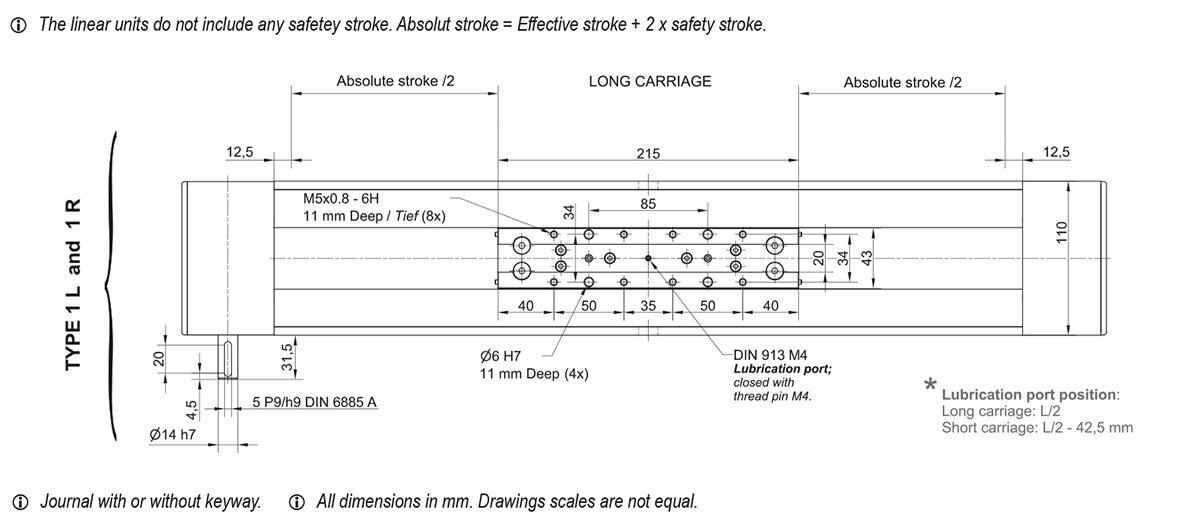

Dimensions in mm.
Read more

Product Information

Modulus of Elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty Cycle: 100%
Max. Acceleration (m/s²): 70
Max. Travel Speed (m/s): 6
下載PDF檔 code.product.loadingpdf
+ 加入 PDF 目錄
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Carriage Length Lv (mm) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpx (Nm) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) Moved Mass (kg) Max. Repeatability (mm) Max. Length Lmax (mm) Max. Stroke (mm) Min. Stroke (mm)
Get quote 2 170 610 118 235 19800 35000 6470 8390 260 90 90 0.64 ± 0.08 6000 5805 40
Get quote 2 215 1225 1680 1680 39600 70000 13070 18820 525 880 550 0.98 ± 0.08 6000 5760 40

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote Carriage version Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpx (Nm) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm)
Get quote S2 39600 70000 1220 19.8 × A (mm) 19.8 × A (mm) 12940 16770 520 8.4 × A (mm) 6.5 × A (mm)
Get quote S2 39600 70000 1220 19.8 × A (mm) 19.8 × A (mm) 12940 16770 520 8.4 × A (mm) 6.5 × A (mm)
Designation Select all CAD Compare Get quote Max. Travel Speed (m/s) No Load Torque (Nm) Pulley Drive Ratio (mm/rev) Pulley Diameter Belt Type Belt Width Max. Force Transmitted by Belt (N) Specific Spring Constant Cspec (N) Max. Drive Torque (Nm) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴)
Get quote 6 0.98 × nc 120 38.2 AT 5 50 820 960000 15.7 31.1 217.2
Get quote 6 1.00 × nc 120 38.2 AT 5 50 820 960000 15.7 31.1 217.2
Designation Select all CAD Compare Get quote Mass of Linear Unit (kg) Mass Moment of Inertia (10⁻⁵ kg m²) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴) Moved Mass (kg) No Load Torque (Nm)
Get quote 3.6 + 0.0072 × (Abs. Stroke + (nc - 1) × A) + 0.64 × (nc - 1) 36 + 0.0125 × (Abs. Stroke + (nc - 1) × A) + 23.3 × (nc - 1) 31.1 217.2 0.64 0.98 × nc
Get quote 4.2 + 0.0072 × (Abs. Stroke + (nc - 1) × A) + 0.98 × (nc - 1) 49 + 0.0125 × (Abs. Stroke + (nc - 1) × A) + 35.8 × (nc - 1) 31.1 217.2 0.98 1.00 × nc
