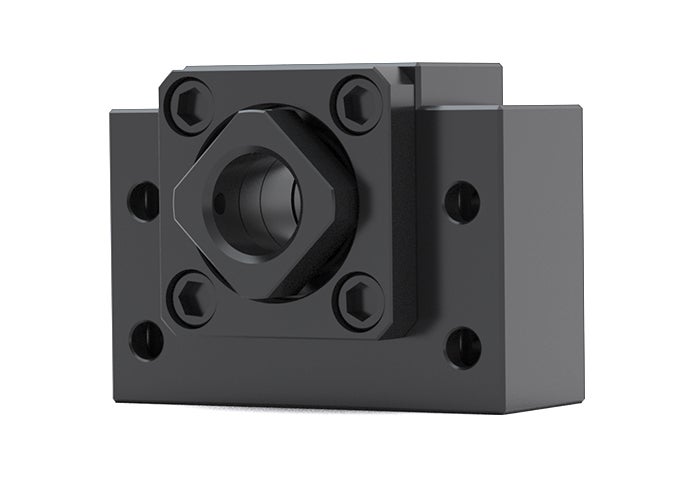

BKN
Support unit for end of ball screw machined accordingly

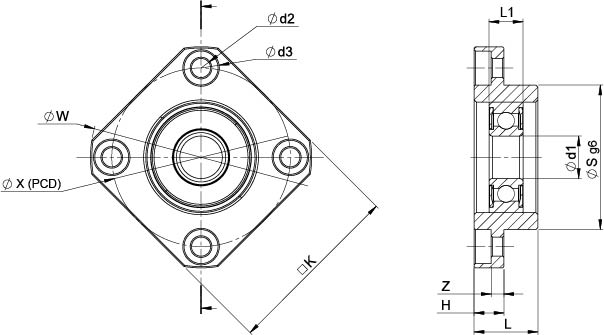

FFN
All dimensions in mm.
Read more
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Bearing | |
|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Screw dim. 1402 | 608-2Z | ||||
|
|
|
1 | Screw dim. 1605 / 1610 / 1616 / 1632 | 6000-2Z | ||||
|
|
|
1 | Screw dim. 2005 / 2020 / 2040 | 6002-2Z | ||||
|
|
|
2 | Screw dim. 2510 | 6203-2Z | ||||
|
|
|
2 | Screw dim. 3205 / 3210 / 3220 / 3232 | 6204-2Z | ||||
|
|
|
1 | Screw dim. 3205 / 3210 / 3220 / 3232 | 6205-2Z | ||||
|
|
|
1 | Screw dim. 4005 / 4010 / 4020 / 4040 | 6206-2Z |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | H | K | L | S | Z | d1 | d2 | D3 | L1 | X | W | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
7 | 35 | 12 | 28 | 3 | 8 | 3.4 | 6.5 | 7 | 35 | 43 | ||||
|
|
|
7 | 42 | 15 | 34 | 3 | 10 | 4.5 | 8 | 8 | 42 | 52 | ||||
|
|
|
9 | 52 | 17 | 40 | 3.5 | 15 | 5.5 | 9.5 | 9 | 50 | 63 | ||||
|
|
|
11 | 61 | 20 | 50 | 4.5 | 17 | 6.6 | 11 | 12 | 62 | 77 | ||||
|
|
|
11 | 68 | 20 | 57 | 4.5 | 20 | 6.6 | 11 | 14 | 70 | 85 | ||||
|
|
|
14 | 79 | 24 | 63 | 5.5 | 25 | 9 | 14 | 15 | 80 | 98 | ||||
|
|
|
18 | 93 | 27 | 75 | 7 | 30 | 11 | 17 | 16 | 95 | 117 |
-
-
BFN
Support unit for end of ball screw machined accordingly -

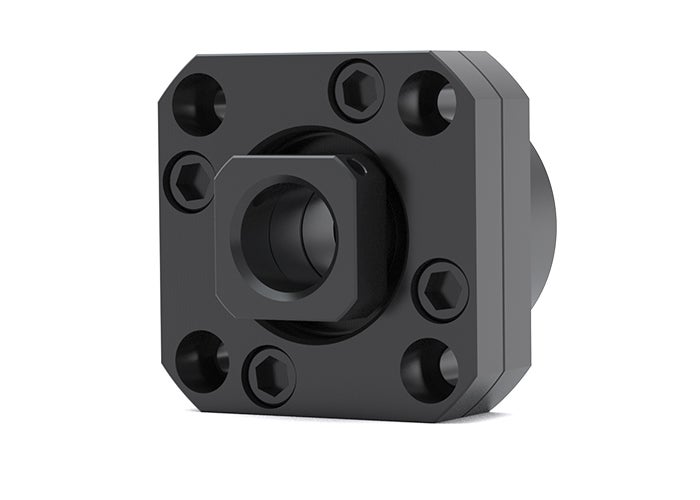

FKN
Support unit for end of ball screw machined accordingly -

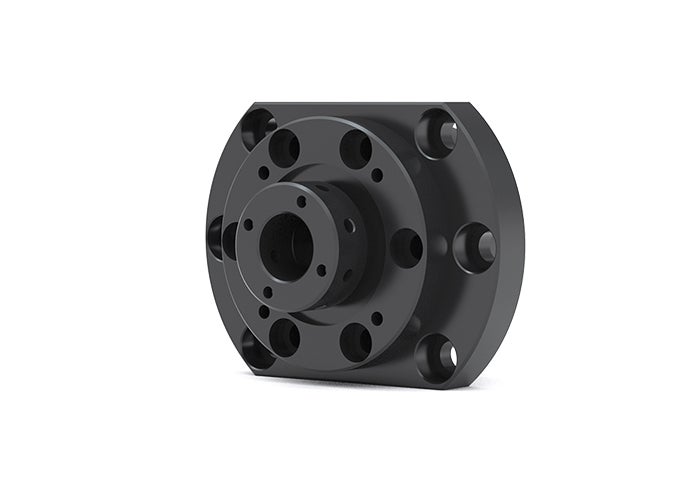

WBK..DF/WBK..DFF
