BKN

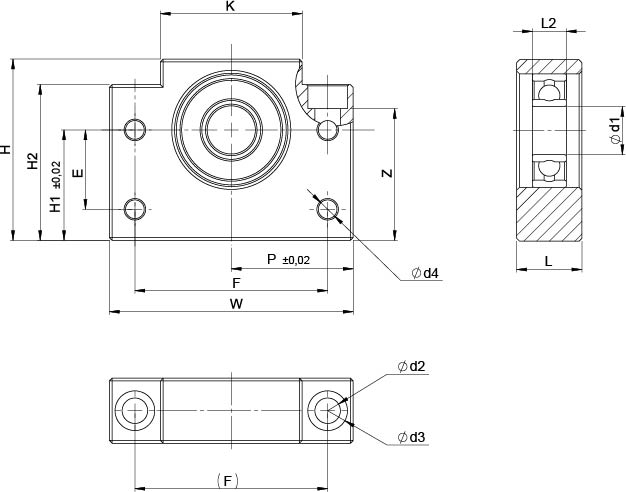

Support unit for end of ball screw machined accordingly
BFN
All dimensions in mm.
Read more
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Bearing | |
|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Screw dim. 1202 / 1204 | 606-2Z | ||||
|
|
|
1 | Screw dim. 1402 | 608-2Z | ||||
|
|
|
1 | Screw dim. 1605 / 1610 / 1616 / 1632 | 6000-2Z | ||||
|
|
|
1 | Screw dim. 2005 / 2020 / 2040 | 6002-2Z | ||||
|
|
|
1 | Screw dim. 2510 | 6203-2Z | ||||
|
|
|
1 | Screw dim. 2505 / 2525 / 2550 | 6004-2Z | ||||
|
|
|
1 | Screw dim. 3205 / 3210 / 3220 / 3232 | 6205-2Z | ||||
|
|
|
1 | Screw dim. 4005 / 4010 / 4020 / 4040 | 6206-2Z | ||||
|
|
|
1 | Screw dim. 5010 / 5050 | 6208-2Z |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | E | F | H | K | L | P | Z | d1 | d2 | D3 | D4 | H1 | H2 | L2 | W | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
- | 38 | 32 | 25 | 14 | 26 | 14 | 6 | 6.6 | 11 | - | 17 | 26 | 6 | 52 | ||||
|
|
|
15 | 46 | 39 | 34 | 20 | 30 | 27.5 | 8 | 6.6 | 10.8 | 5.5 | 22 | 32.5 | 7 | 60 | ||||
|
|
|
18 | 46 | 43 | 34 | 20 | 30 | 31 | 10 | 6.6 | 10.8 | 5.5 | 25 | 32.5 | 8 | 60 | ||||
|
|
|
18 | 54 | 48 | 40 | 20 | 35 | 31.5 | 15 | 6.6 | 11 | 5.5 | 28 | 38 | 9 | 70 | ||||
|
|
|
28 | 68 | 64 | 50 | 23 | 43 | 46.5 | 17 | 9 | 14 | 6.6 | 39 | 55 | 12 | 86 | ||||
|
|
|
22 | 70 | 60 | 52 | 26 | 44 | 41.5 | 20 | 9 | 14 | 6.6 | 34 | 50 | 12 | 88 | ||||
|
|
|
33 | 85 | 80 | 64 | 30 | 53 | 59 | 25 | 11 | 17 | 9 | 48 | 70 | 15 | 106 | ||||
|
|
|
33 | 102 | 89 | 76 | 32 | 64 | 65 | 30 | 14 | 20 | 11 | 51 | 78 | 16 | 128 | ||||
|
|
|
37 | 130 | 110 | 100 | 37 | 80 | 72.5 | 40 | 18 | 26 | 14 | 60 | 90 | 18 | 160 |
-
-

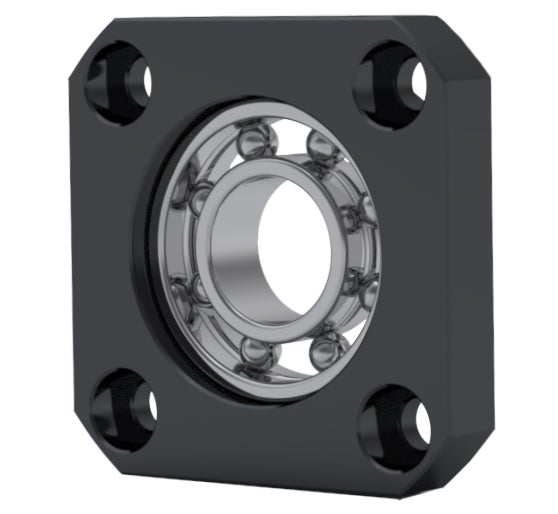

FKN
Support unit for end of ball screw machined accordingly -
FFN
Support unit for end of ball screw machined accordingly -
WBK..DF/WBK..DFF
Support unit heavy load for end of ball screw machined accordingly
