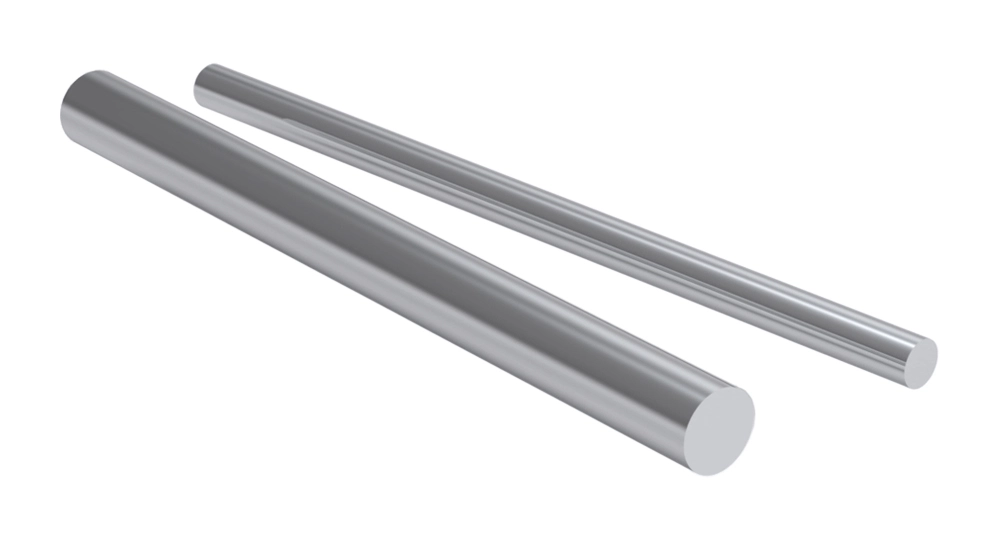

WV
Dimensions in mm.
Other types available on request.
Read more
Other types available on request.
Product Information
Material: Quenched and tempered steel Cf53 / 1.1213 / C53G
Surface hardness: 59 HRC min. Hardening depth according to DIN ISO 18203.
Coating: Chrome layer, thickness ca. 10 µm. Layer hardness ≥ 800 HV.
Standard Tolerance: ISO h7
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | Compare | Get quote | Lead Time * | Weight (kg/m) |
|---|---|---|---|---|---|
|
|
|
1 | 0.62 | ||
|
|
|
1 | 0.89 | ||
|
|
|
1 | 1.58 | ||
|
|
|
1 | 2.47 | ||
|
|
|
1 | 3.85 | ||
|
|
|
1 | 5.55 | ||
|
|
|
1 | 9.86 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

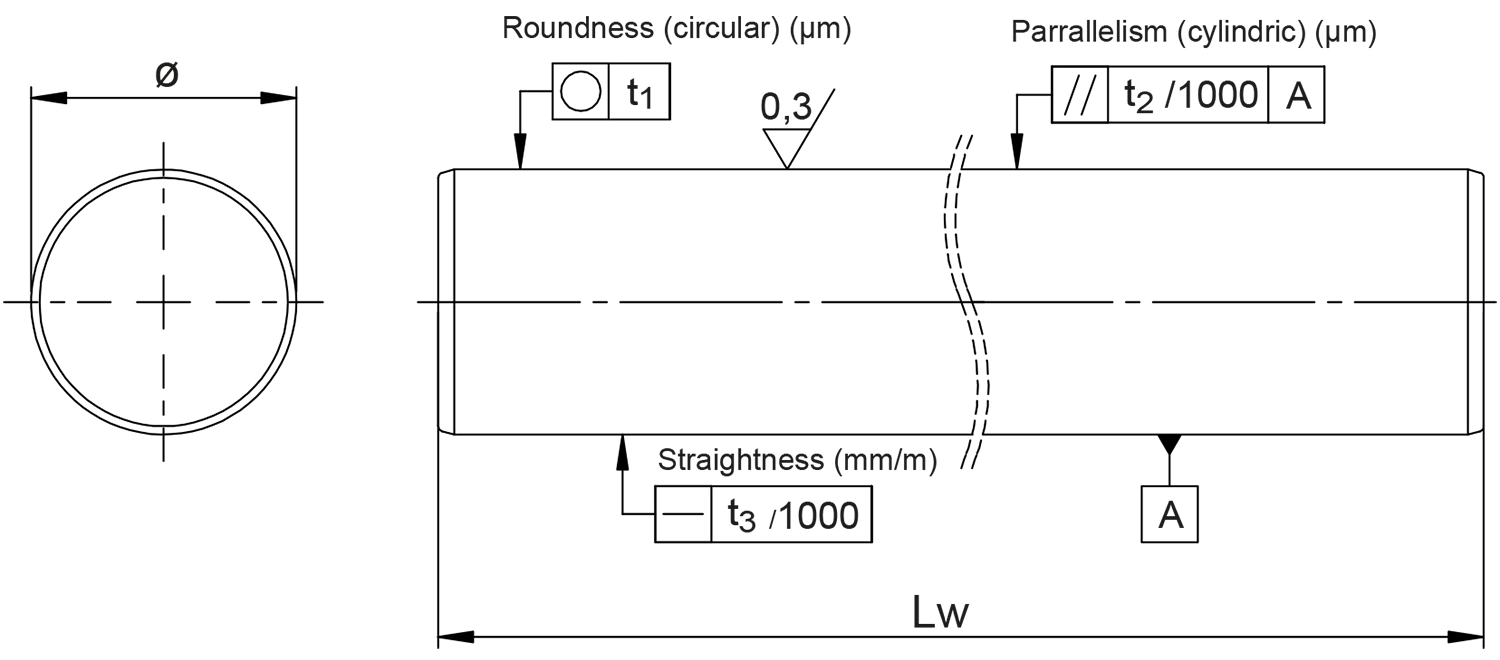

| Designation | Select all | Compare | Get quote | Lw (mm) | Diameter | Hardening Depth (mm) | Roundness t1 (μm) | Parallelism t2 (μm) | Straightness t3 (mm/m) |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
6000 | 10 | 0.4 | 6 | 9 | 0.3 | ||
|
|
|
6000 | 12 | 0.6 | 8 | 11 | 0.3 | ||
|
|
|
6000 | 16 | 0.6 | 8 | 11 | 0.2 | ||
|
|
|
6000 | 20 | 0.9 | 9 | 13 | 0.2 | ||
|
|
|
6000 | 25 | 0.9 | 9 | 13 | 0.2 | ||
|
|
|
6000 | 30 | 0.9 | 9 | 13 | 0.2 | ||
|
|
|
6000 | 40 | 1.5 | 11 | 16 | 0.2 |
-
-
