SBE
Self-aligning closed type linear ball bearing, Ø 16-50 mm.
WB
Dimensions in mm. Other tolerances according to standard shaft W.
Length tolerance: ± 3 mm, separating cut deburred.
Distance tolerance ± 0,2mm, P1 = P2
Positional tolerance of thread Ø (± 0,2 mm).
Thread depth = A
Thread dimension = C and S.
Other pitch available on request.
Contact us for CAD-files.
Read more
Length tolerance: ± 3 mm, separating cut deburred.
Distance tolerance ± 0,2mm, P1 = P2
Positional tolerance of thread Ø (± 0,2 mm).
Thread depth = A
Thread dimension = C and S.
Other pitch available on request.
Contact us for CAD-files.
Product Information
Material: Quenched and tempered steel Cf53 / 1.1213 / C53G
Surface hardness: 59 HRC min.
Standard Tolerance: ISO h6
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | Compare | Get quote | Lead Time * | S | A | C | T | P1 | P | Lw (mm) | Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 5 | 7 | 2 | M4 | 37.5 | 75 | 6000 | 12 | ||
|
|
|
1 | 6 | 9 | 2.5 | M5 | 50 | 100 | 6000 | 16 | ||
|
|
|
1 | 7 | 11 | 3 | M6 | 50 | 100 | 6000 | 20 | ||
|
|
|
1 | 9 | 15 | 3 | M8 | 60 | 120 | 6000 | 25 | ||
|
|
|
1 | 11 | 17 | 3.5 | M10 | 75 | 150 | 6000 | 30 | ||
|
|
|
1 | 11 | 19 | 4 | M10 | 100 | 200 | 6000 | 40 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
LME
Closed type, linear ball bearing, Ø 5-60 mm. -
LMES
Closed type stainless, linear ball bearing Ø 8-40 mm. -
LME….UUOP
Open type, linear ball bearing, Ø 12-50 mm. -
KH
Compact type, linear ball bearing, Ø 6-50 mm. -
KBA...UU
Linear unit, closed type, Ø 12-50 mm. -
KBA...UUOP
Linear unit, open type, Ø 16-40 mm. -
LMEK...UU
Linear unit with flange, Ø 8-60 mm. -
LMEK...LUU
Linear unit with flange, long type, Ø 12-60 mm. -

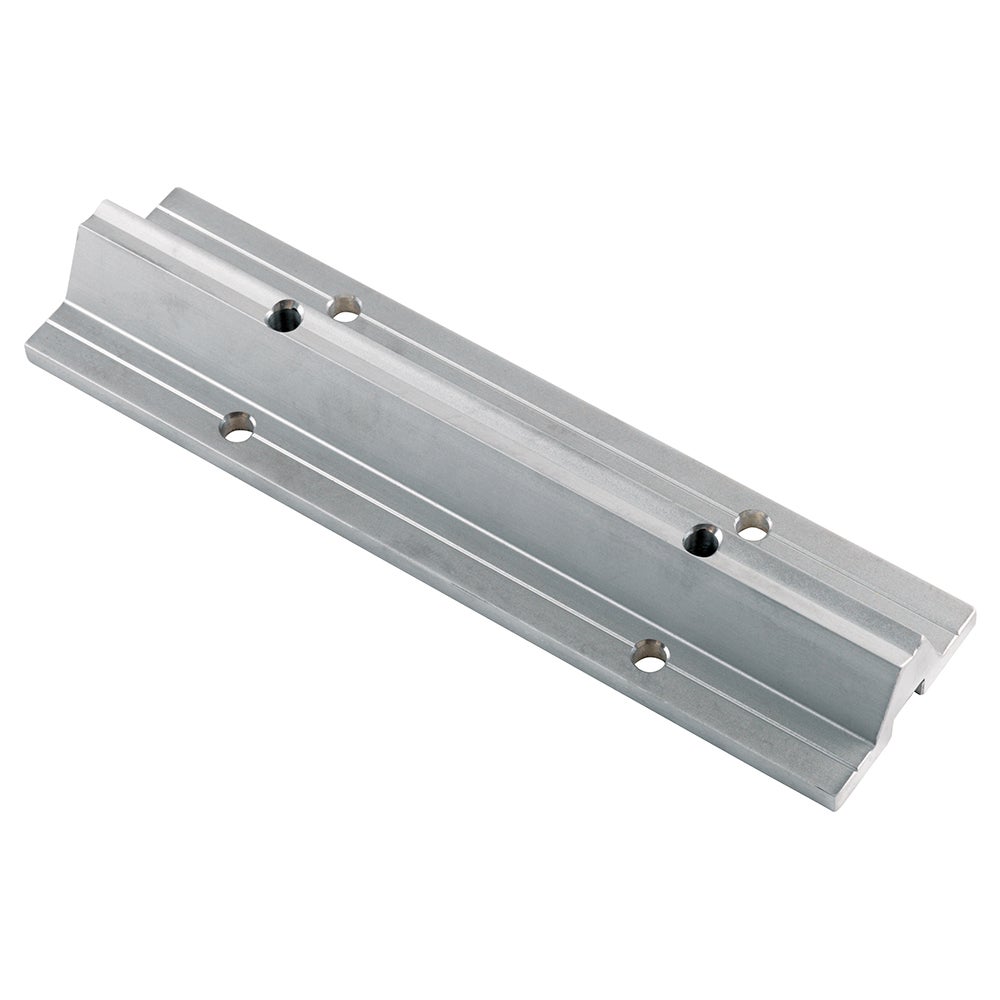

FTSN
Aluminium shaft support with flange, for drilled shafts Ø 12-40 mm. -

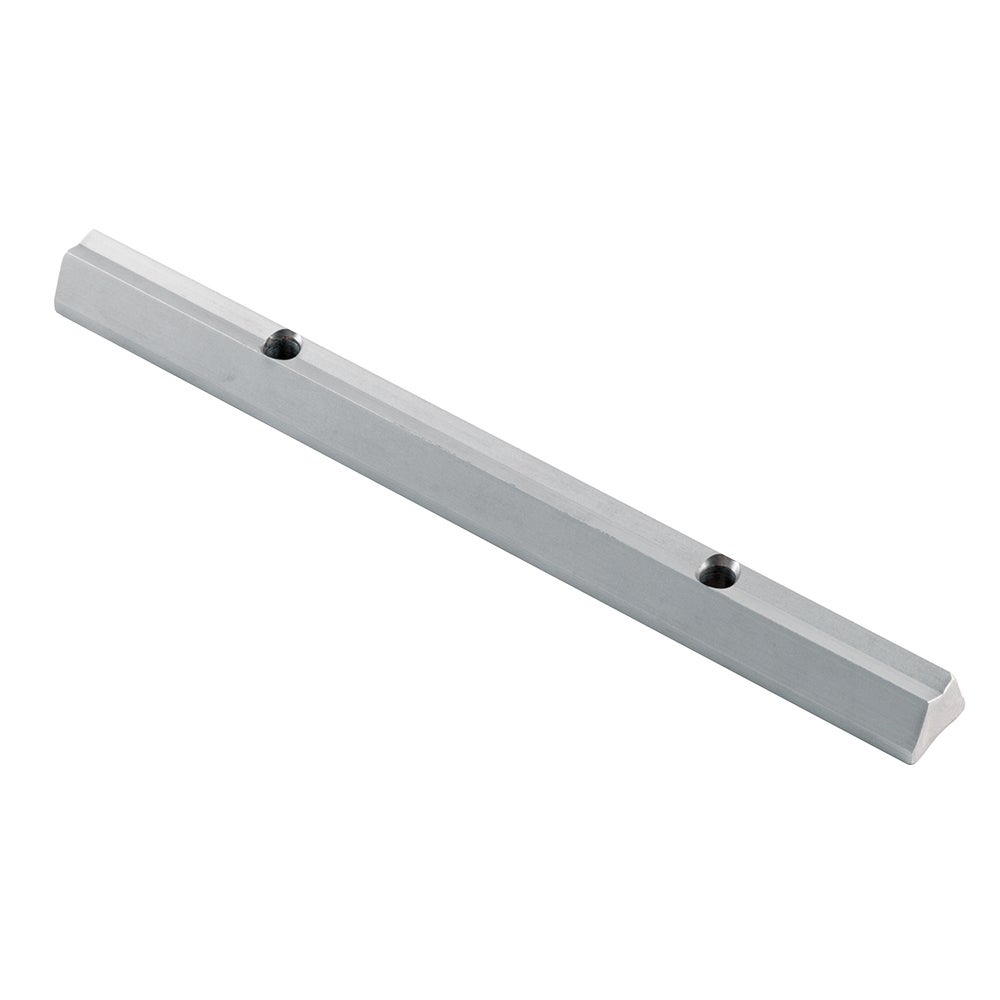

FTSU
