Bellow

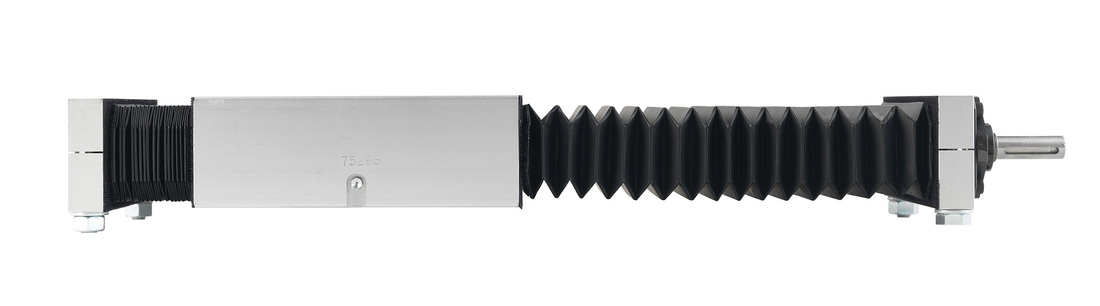

Bellow for QME Linear Unit.
Note that “stroke” for a L+R unit refers to the stroke of each individual slider.
Bellows are recommended for all applications where the unit isn’t protected against dust and dirt. The bellow may also work as a squeeze protection.
Dimensions in mm.
Read more
Note that “stroke” for a L+R unit refers to the stroke of each individual slider.
Bellows are recommended for all applications where the unit isn’t protected against dust and dirt. The bellow may also work as a squeeze protection.
Dimensions in mm.
Product Information
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | Compare | Get quote | Lead Time * | Bellow Ltot | Bellow R+L Ltot |
|---|---|---|---|---|---|---|
|
|
|
2 | stroke * 1.286 + 110 | stroke * 2.572 + 195 | ||
|
|
|
2 | stroke * 1.200 + 162 | stroke * 2.4 + 292 | ||
|
|
|
2 | stroke * 1.146 + 234 | stroke * 2.292 + 434 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
