Standard grease nipple
When external NBR seal is chosen (SN), please use long type grease nipple.
Read more
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | Compare | Get quote | Lead Time * | Compatible with | Remark | Thread | Type |
|---|---|---|---|---|---|---|---|---|
|
|
|

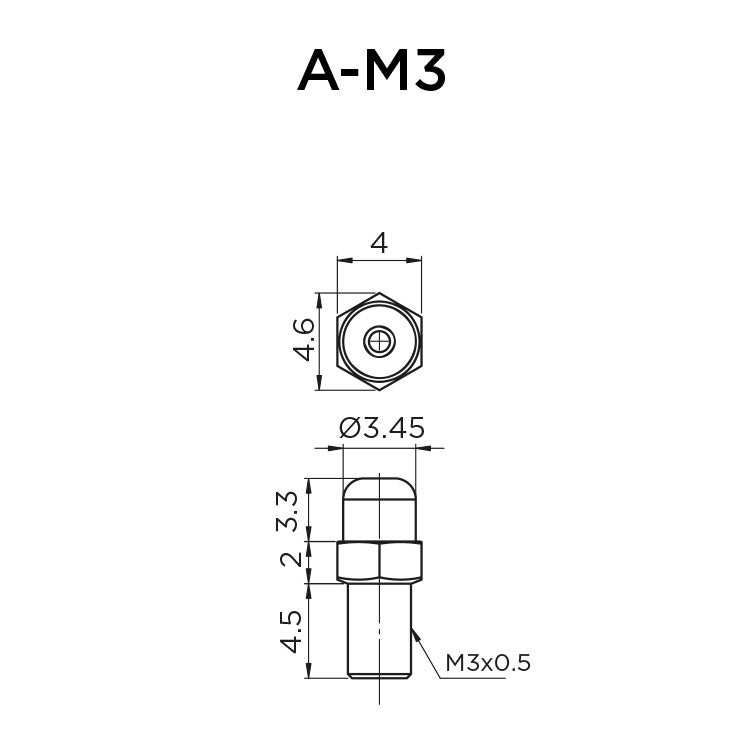

1 | Block size 15 | - | M3x0.5 | Normal | ||
|
|
|

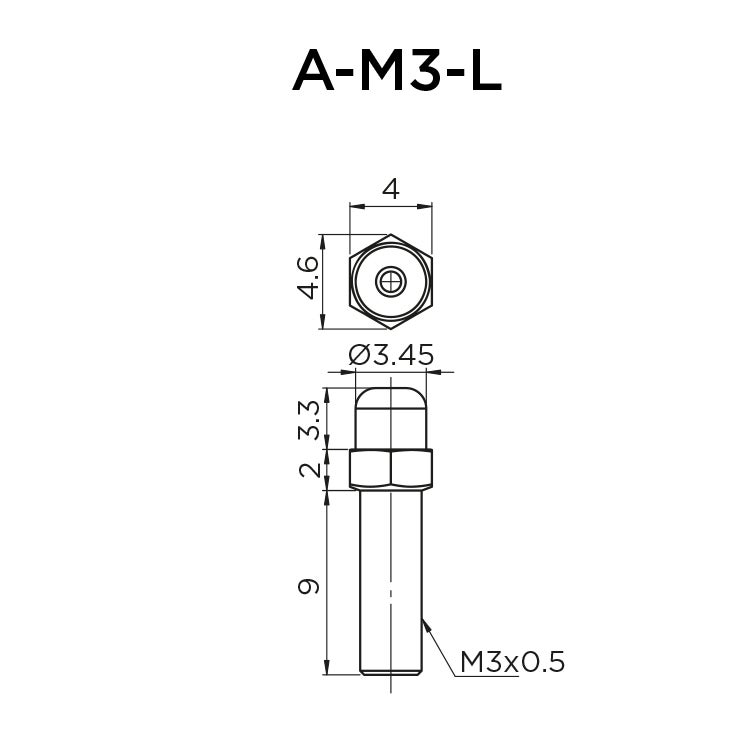

1 | Block size 15 | For block with external seal (SN) | M3x0.5 | Normal | ||
|
|
|

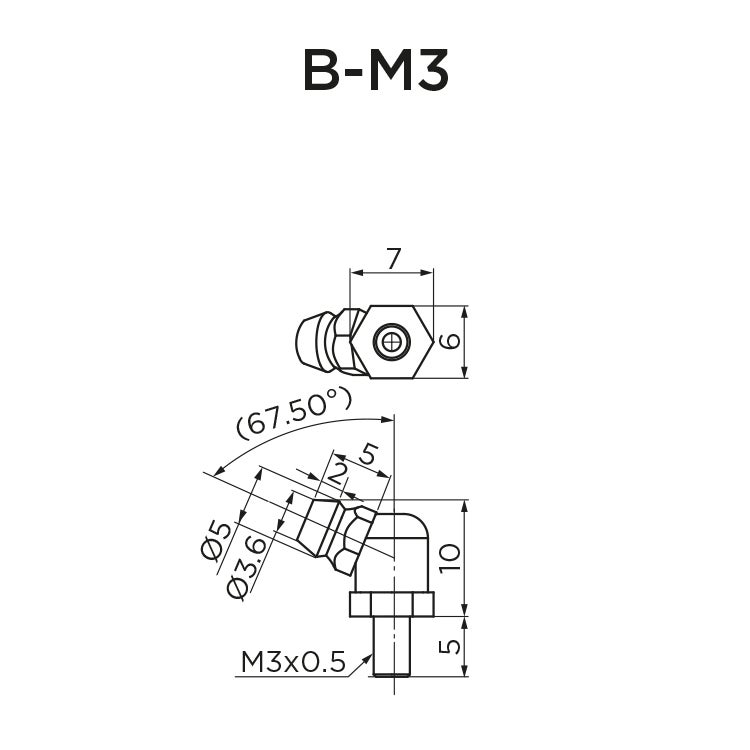

2 | Block size 20 | - | M3x0.5 | Normal | ||
|
|
|

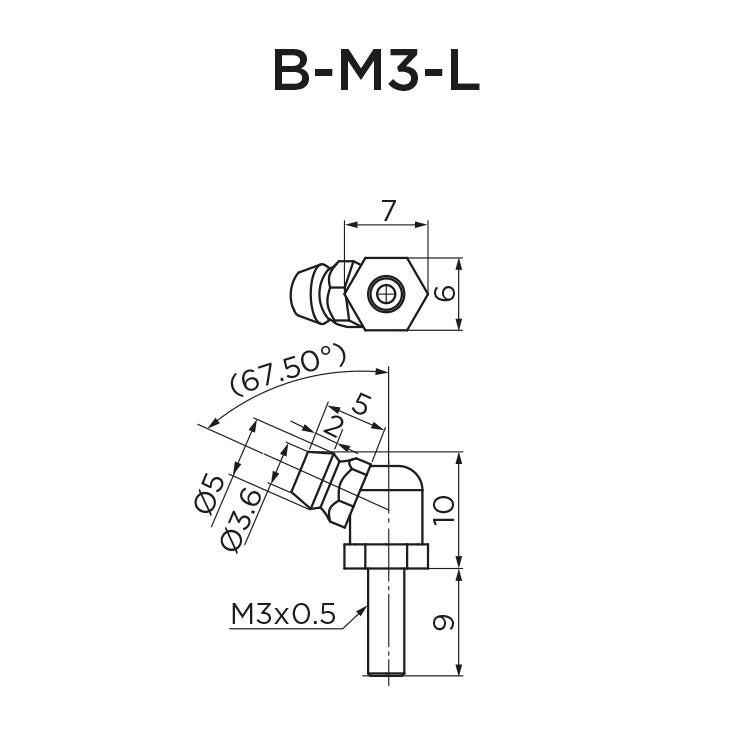

2 | Block size 20 | For block with external seal (SN) | M3x0.5 | Long | ||
|
|
|

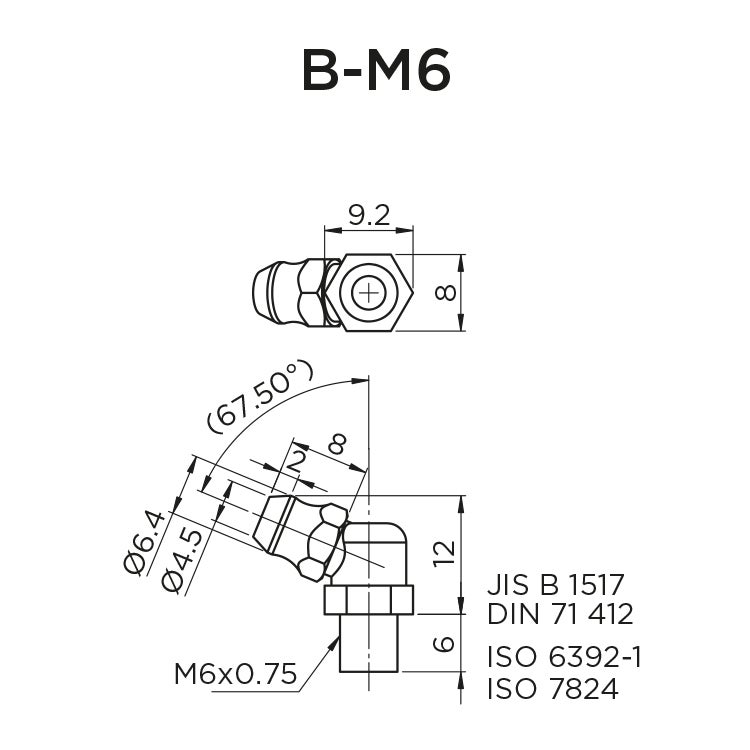

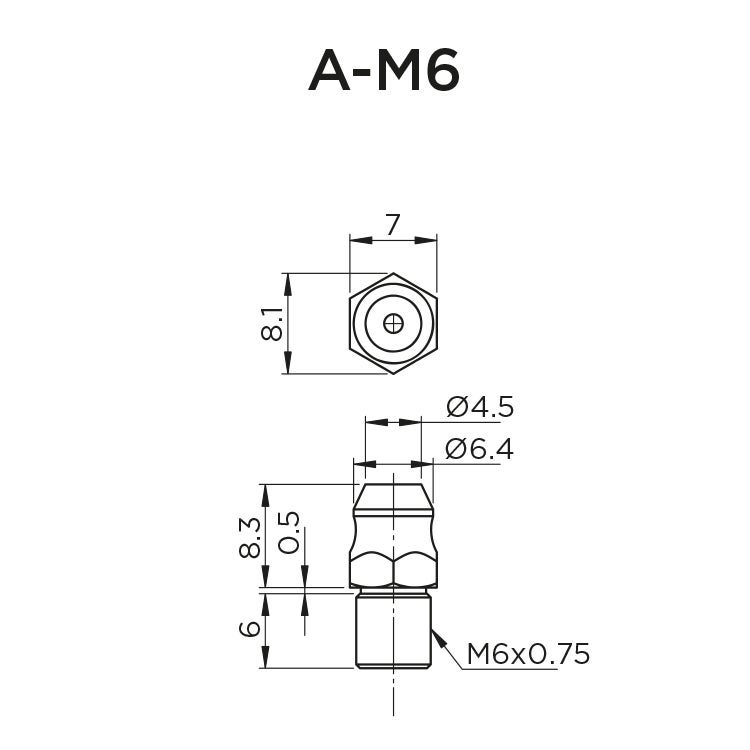

2 | Block size 25, 30, 35 & 55 | - | M6x0.75 | Normal | ||
|
|
|

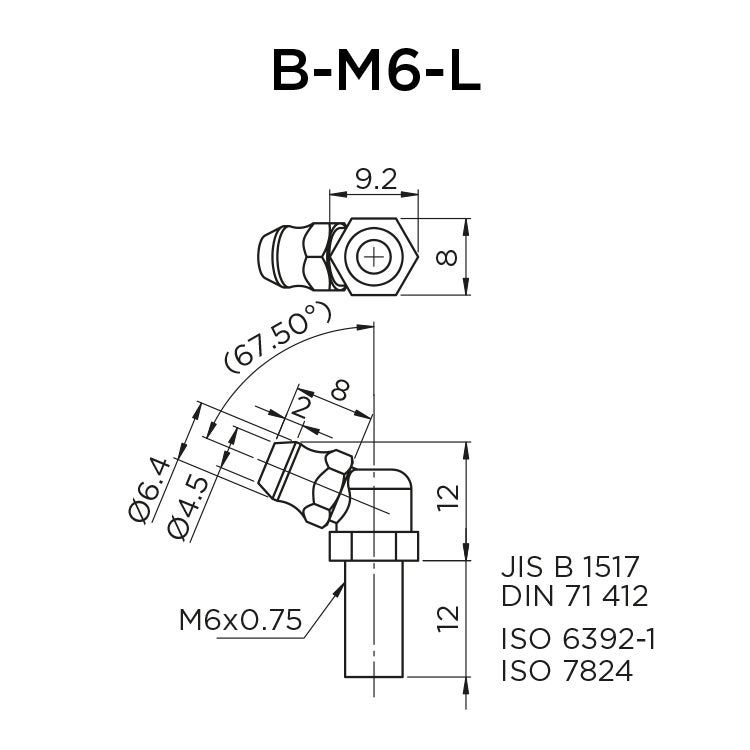

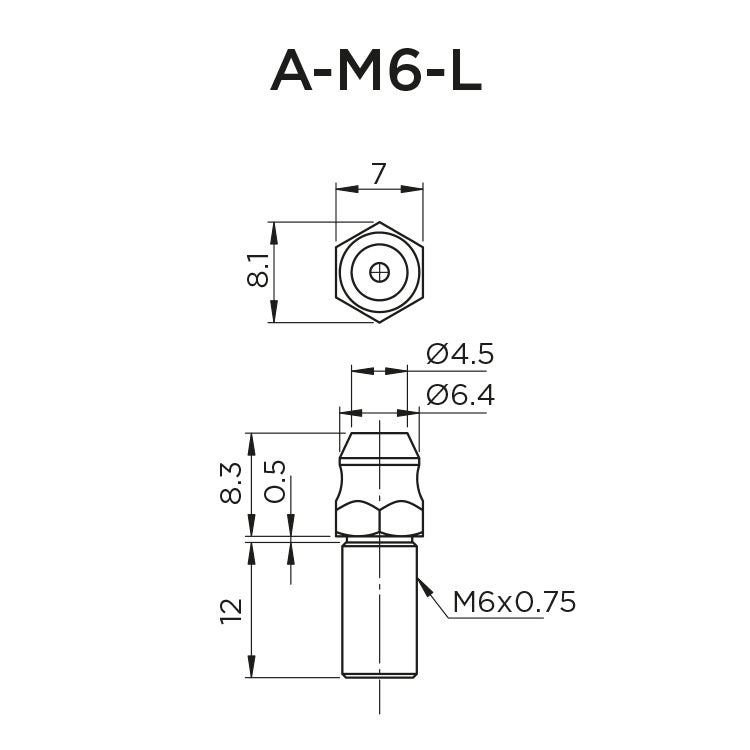

2 | Block size 25, 30, 35 & 55 | For block with external seal (SN) | M6x0.75 | Long | ||
|
|
|
2 | Block size 25, 30, 35 & 55 | - | M6x0.75 | Normal | ||
|
|
|
2 | Block size 25, 30, 35 & 55 | For block with external seal (SN) | M6x0.75 | Long | ||
|
|
|

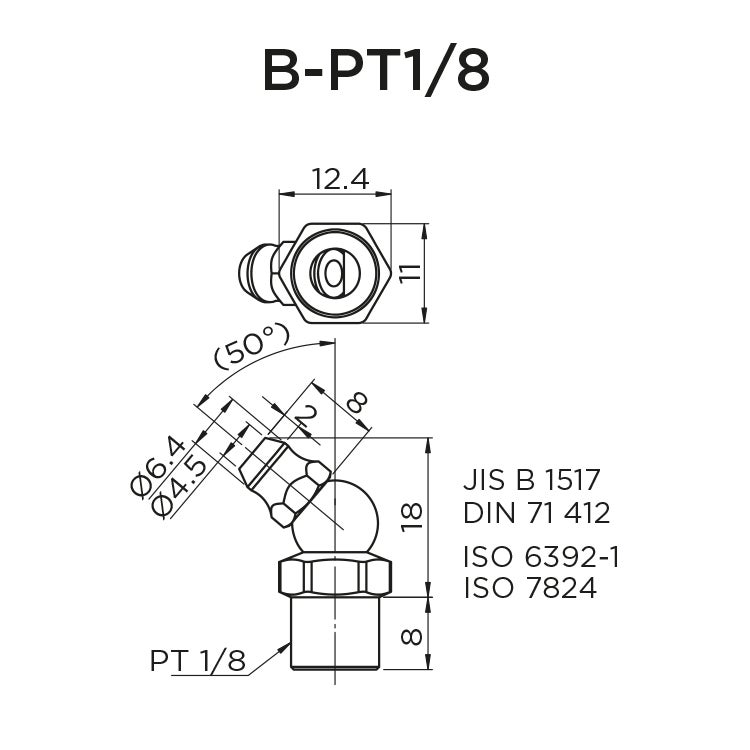

2 | Block size 45 | - | PT 1/8 | Normal | ||
|
|
|

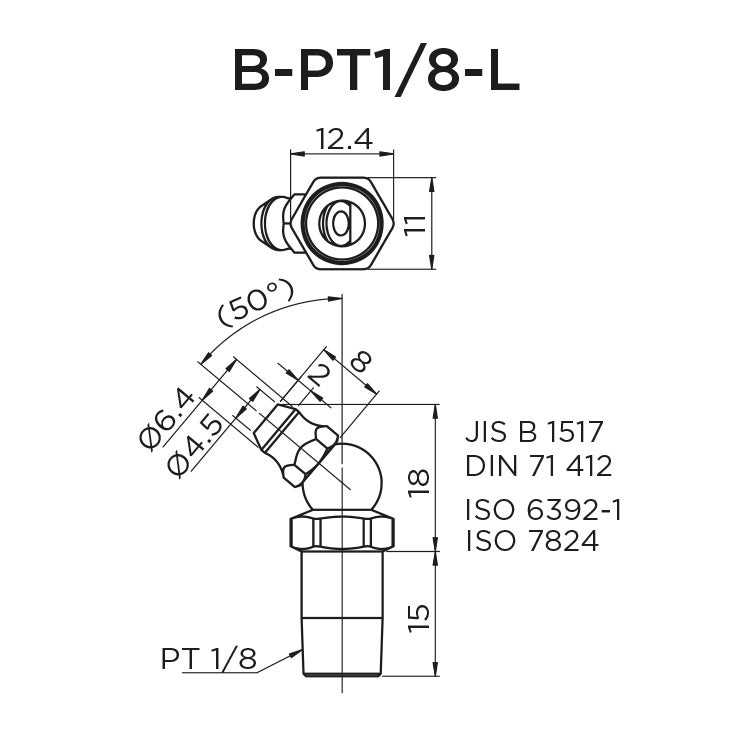

2 | Block size 45 | For block with external seal (SN) | PT 1/8 | Long |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
