NBR Seal / Metal Scraper
Extra protection for harsh environments
Metal-Plastic Hole Cap
The top of the cap is made of stainless steel and prevents dirt or scrap from piling up in the bolt hole, which may affect the end seal function.
The lower part of the cap is made of plastic and can be installed directly on the standard rail. There is no need to conduct other fine slot milling for bolt-hole.

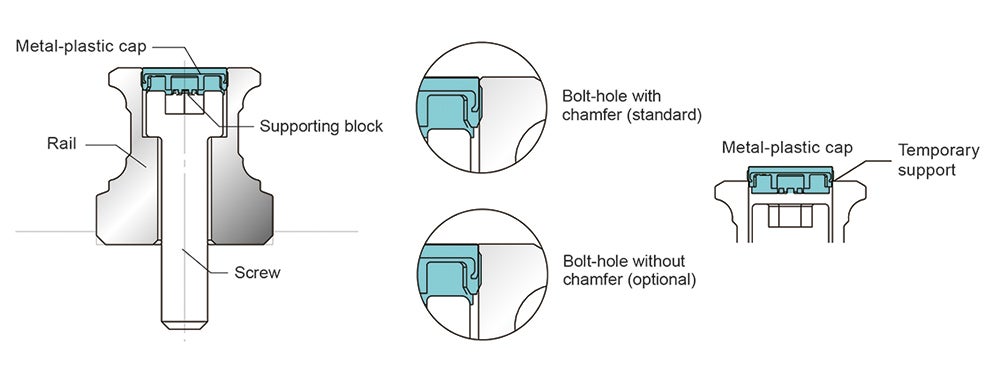

The bolt-hole chamfer for standard rail is C0.2 mm. A non-bolt-hole chamfer rail is available on request for absolutely dust-proof applications. Please contact us for more information.

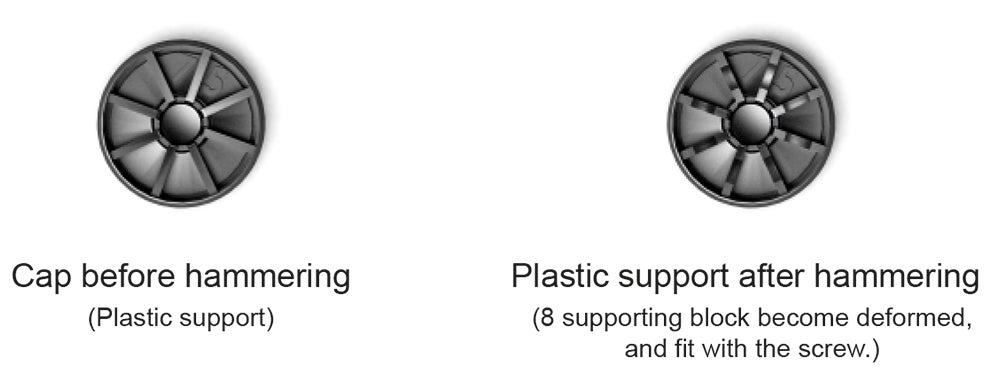

The cap is designed with supporting block to prop up the cap, fix the screw stably and prevent it from sinking.
Dimensions in mm.
Read more
The lower part of the cap is made of plastic and can be installed directly on the standard rail. There is no need to conduct other fine slot milling for bolt-hole.
The bolt-hole chamfer for standard rail is C0.2 mm. A non-bolt-hole chamfer rail is available on request for absolutely dust-proof applications. Please contact us for more information.
The cap is designed with supporting block to prop up the cap, fix the screw stably and prevent it from sinking.
Dimensions in mm.
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | Compare | Get quote | Lead Time * | Compatible with | Screw Type |
|---|---|---|---|---|---|---|
|
|
|
2 | AR15 , WRC21/15, WRC27/20 | M4 | ||
|
|
|
1 | AR20 | M5 | ||
|
|
|
1 | AR25 | M6 | ||
|
|
|
1 | AR30 , AR35 | M8 | ||
|
|
|
2 | AR45 | M12 | ||
|
|
|
2 | AR55 | M14 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | Compare | Get quote | H | C | D |
|---|---|---|---|---|---|---|
|
|
|
1.7 | 2.0 | 7.7 | ||
|
|
|
3.4 | 4.0 | 9.7 | ||
|
|
|
2.9 | 3.5 | 11.3 | ||
|
|
|
3.9 | 4.5 | 14.3 | ||
|
|
|
5.0 | 5.6 | 20.4 | ||
|
|
|
6.0 | 6.5 | 24.4 |
-
-
