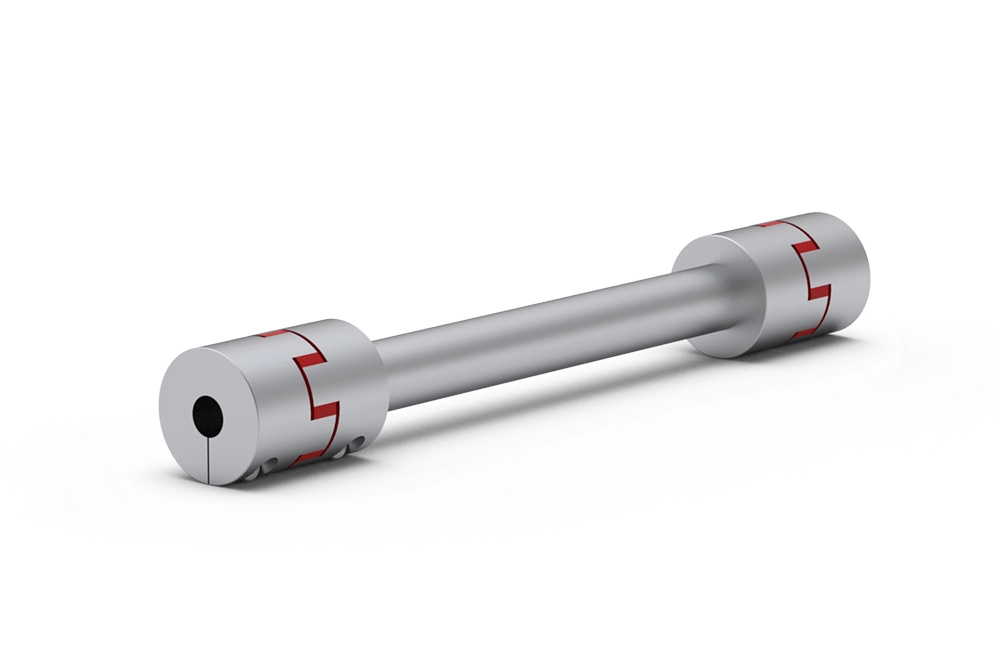

Synchronisation Shaft OSL
For longer distances bearing supports are needed, please contact Rollco.
For CAD-files contact Rollco.

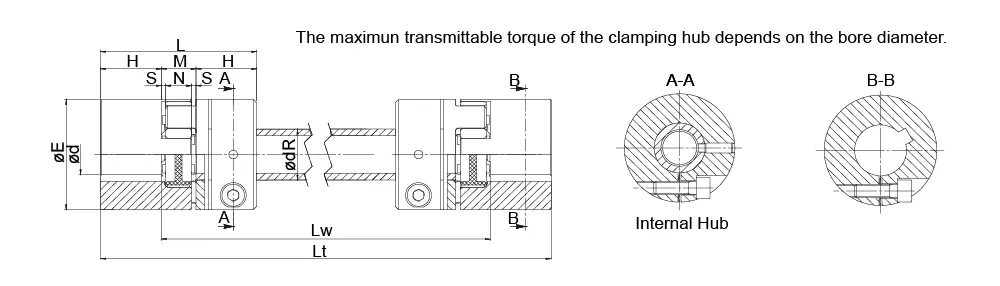

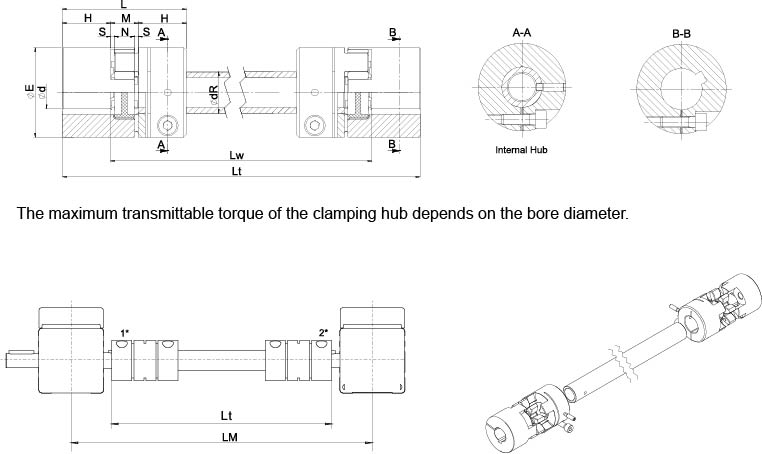

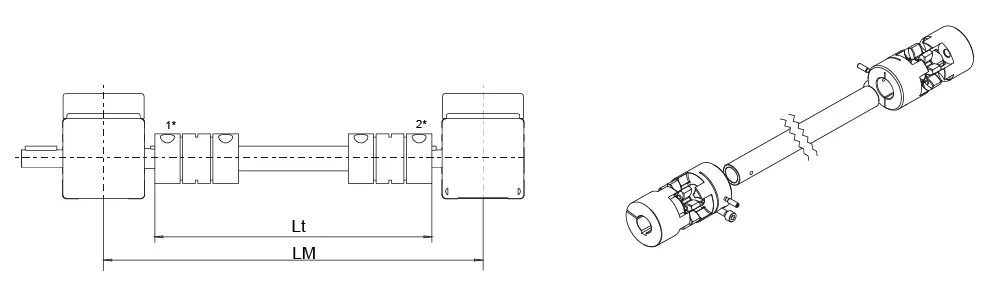

Dimensions in mm.
Explanations to the table below:
CT = Torsional rigidity per meter (Nm/rad)
Read more
For CAD-files contact Rollco.
Dimensions in mm.
Explanations to the table below:
CT = Torsional rigidity per meter (Nm/rad)
Product Information
下載PDF檔
code.product.loadingpdf
+
加入 PDF 目錄
| Designation | Select all | Compare | Get quote | Lead Time * | Internal Hub Ms (Nm) | Internal Hub MT (Nm) | CT (Nm/rad) | Mass Moment of Inertia (10⁻⁶ kg m²) | E | H | L | M | N | S | Weight (kg) | ød min. | ød max. | Lw min. | Lt | dR x thickness | Moment of inertia (10⁻⁶kg*m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 1.34 | 6 | 59 | - | 30 | 11 | 35 | 13 | 10 | 1.5 | 0.072 + 0.00021 × Lw | 4 | 16 | 48 | On request | 14 × 2.0 | 10.4 + 0.0076 × Lw | ||
|
|
|
2 | 10 | 34 | 314 | 72.4 + 0.0324 × Lw | 40 | 25 | 66 | 16 | 12 | 2 | 0.284 + 0.00044 × Lw | 6 | 24 | 82 | On request | 20 × 3.0 | 72.4 + 0.0324 × Lw | ||
|
|
|
2 | 10 | 45 | 596 | - | 55 | 30 | 78 | 18 | 14 | 2 | 0.624 + 0.00048 × Lw | 8 | 28 | 96 | On request | 25 × 2.5 | 300 + 0.0614 × Lw | ||
|
|
|
2 | 25 | 105 | 2868 | - | 65 | 35 | 90 | 20 | 15 | 2.5 | 0.960 + 0.00128 × Lw | 10 | 38 | 110 | On request | 35 × 5.0 | 656 + 0.2954 × Lw | ||
|
|
|
2 | 25 | 123 | 4521 | - | 80 | 45 | 114 | 24 | 18 | 3 | 1.760 + 0.00149 × Lw | 12 | 45 | 138 | On request | 40 × 5.0 | 1862 + 0.4656 × Lw |
